- Manufacturer Victor Taichung Machinery

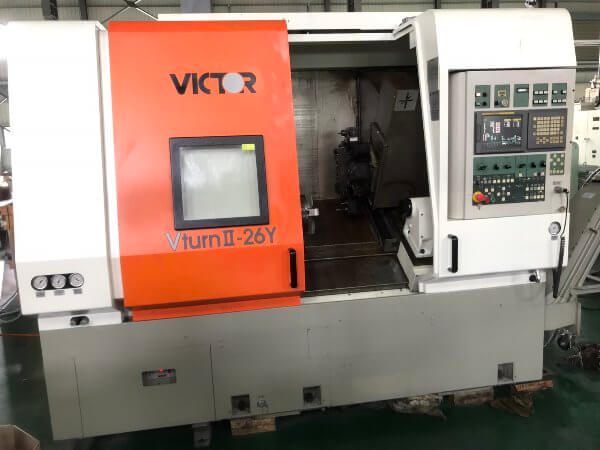

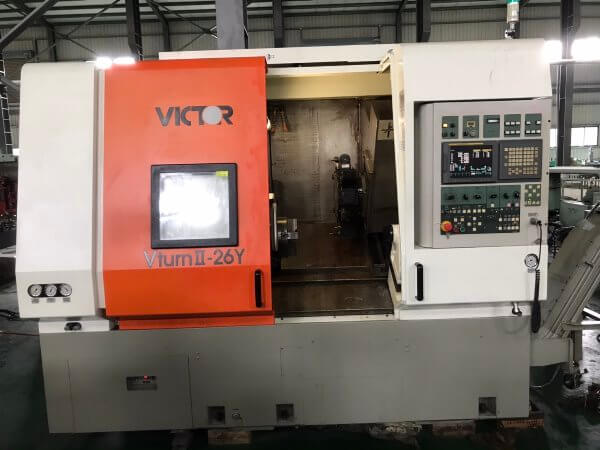

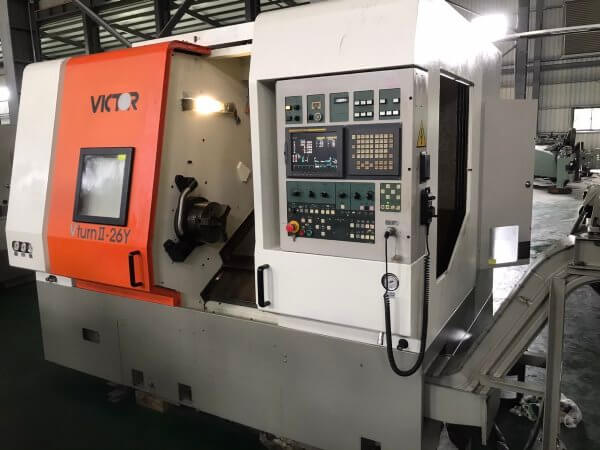

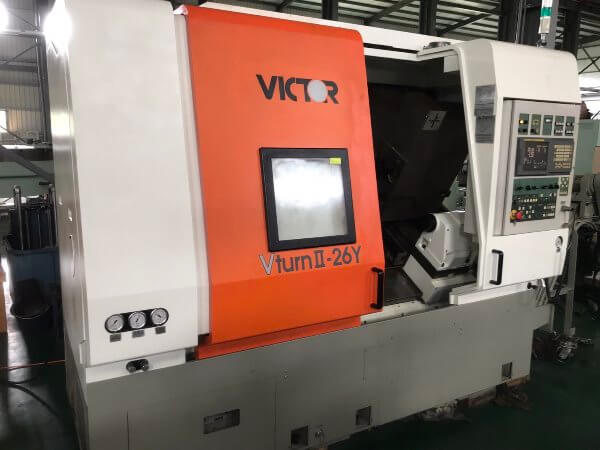

- Specification Vturn II-26Y
- Year sell
- Location 綠田二廠
Dimension

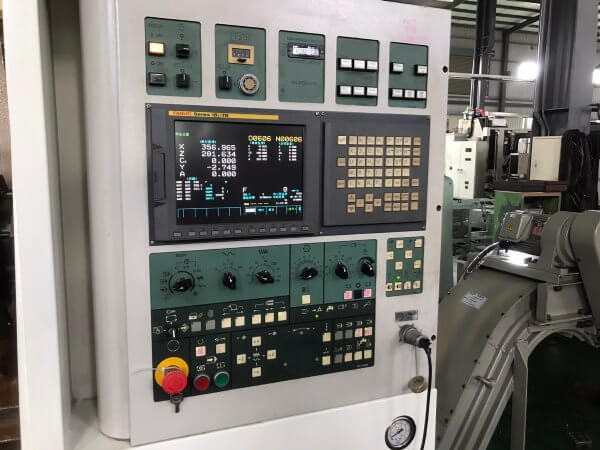

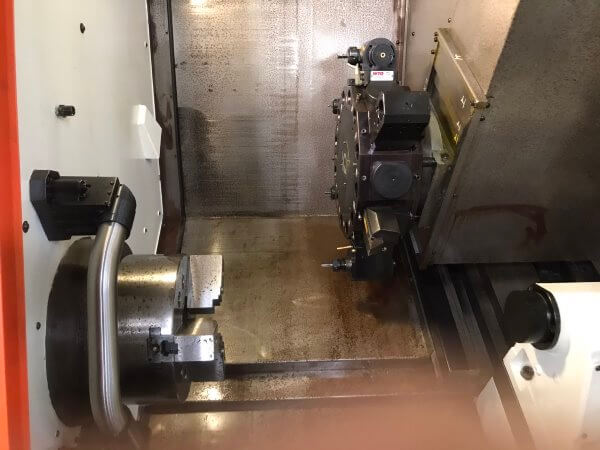

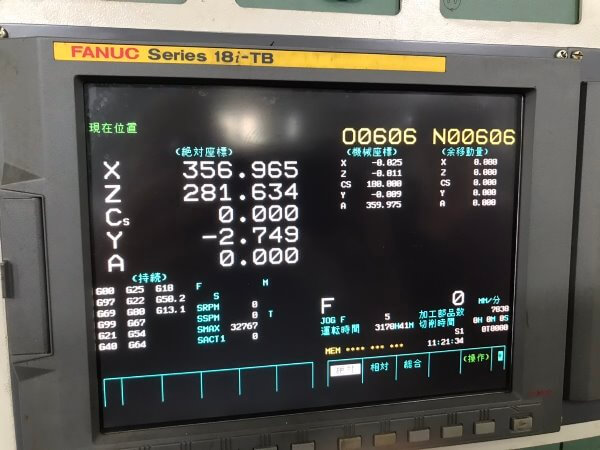

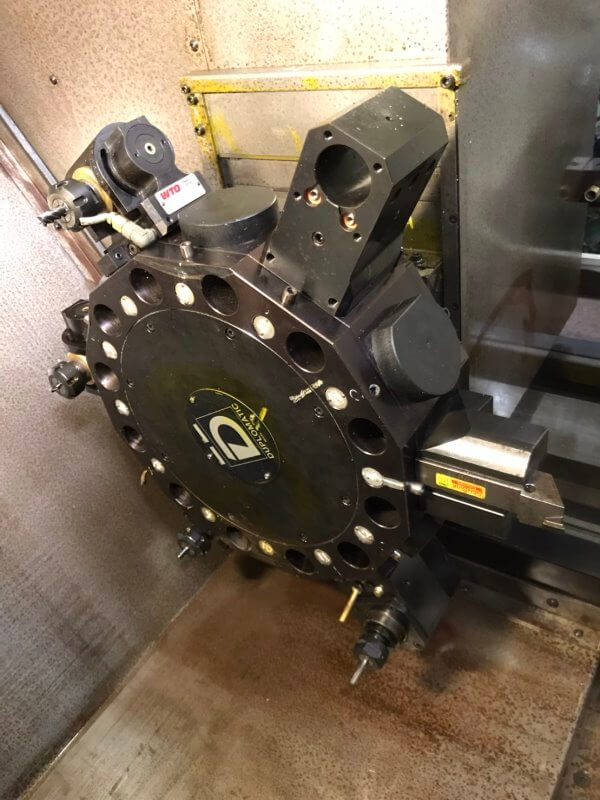

VturnII-26 Y -- Swing over bed 780φ、BETWEEN CENTERS 475φ、Max turning dia 330φ、Std turning dia 285φ、C axis indexing deg 0.001、FANUC 18IT(1980M)、X axis：195、Z axis：475、Y axis：±55、Spindle speed 3500rpm、High power and high spindle Nose(Chuck)A2-8、 torque spindle spindle bore 86、Turret No of tools 12 turret tool shank size 25、Turret max boring bar dia 30、Turret milling 3000rpm、High point rigid tapping Exchange time (T-T)sec 0.3、Tailstock Quill dia85、MT5、Quill stroke 120、Feed rate rapid X axis：18000、Z axis：20000、Y axis：7500、Machine size 2800×2073×2175、Machine Net weight 5600kg
