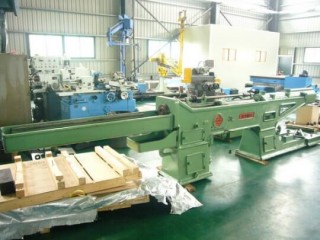

Horizontal broaching machine
Manufacturer : LAPOINTE (U.S.A.)
Specification : 3L
Year :
Dimension :
Dimension
NOMINAL PULLING CAPACITY：31,400 LBS、PEAK PULLING CAPACITY：37,680 LBS、MAX RETURN SPEED.：120 RPM VARIABLE、DISTANCE BETWEEN WAYS：6"、MAIN MOTOR：10HP、WEIGHT (APPROX)：7500

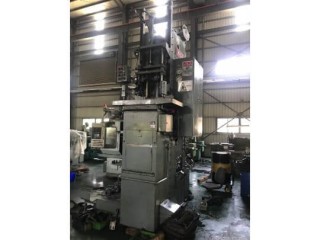

Vertical broaching machines
Manufacturer : NACHI
Specification : NUV-10BTH
Year :
Dimension :
Dimension
Pulling force10Ton、Max stroke 1400mm、Cutting speeds 60Hz 1~7.2M/min、Return speeds 60Hz 20M/min、Broach lifter stroke 440mm、Ram width 430mm、Bolster hole dia 127、Max outside dia of workpiece 380φ、Working table height 2200mm、Main motor 15KW/6P、Floor space 1700×2400mm、Weight 8Ton

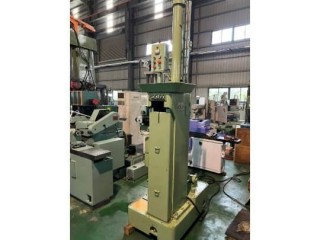

Hydraulic Vertical Broaching machine
Dimension :
Dimension
Max Broaching power 3TON、Max stroke 1000、Max Broach Length 1150、Cutting speed 0~7m/min、Return speed 12/min、Max outside Dia 240、Main motor 3.7kw、oil pressure amount 95L、mahcine weight 1.4TON、machine height 3.1m
