Radial drilling machine
Dimension :
Dimension
TYPE DMB TABLE SIZE、400x1130 MAX 25φ

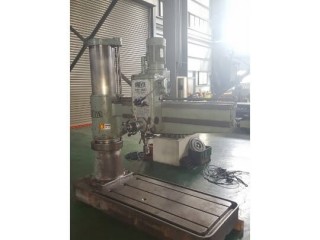

Radial drilling machine
Dimension :
Dimension
Drilling solid steel 45、cast lron52、boring in steel 80、cast lron 150、spindle dia and quil 65/80、spindl vertical travel 300、morse taper NO.4、speed R.P.M 35~1526rpm、column diameter 320、max distance column sruface to spindle center 380~1320 、max distance base to spindle 2600、main motors 2.2kw、

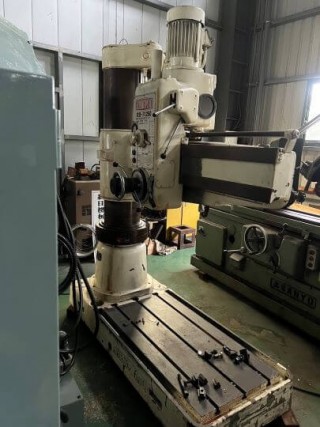

Radial drilling machine
Dimension :
Dimension
Drilling capacity steel 75、cast iron 90、Tapping capacity steel 60、cast iron 75、column dia 416、Max dist from column saface to spindle center 1620(Min 350)、max dist from spindle to base 1575(min 340)、Spindle dia 75/95、taper M.T5、Spindle travel 400、arm travel 850、spindle box travel 1330、weight 4300kg

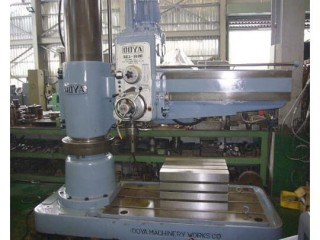

Radial drilling machine
Dimension :
Dimension
drilling capacity steel 50、cast iron60、tapping capacity steel 45、cast iron 52、column dia 340、max dist from column surface to spindle center 1480 (min 265)、gear box travel 1215、max dist from spindle to base 1330、arm travel 660、spindle dia 60、taper mt5、spindle travel 300

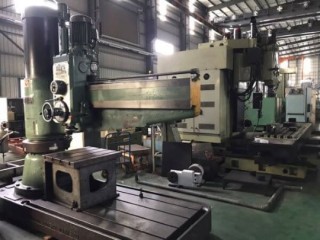

Radial drilling machine
Dimension :
Dimension
Drilling solid steel 75、cast lron90、boring in steel 200、cast lron 280、spindle dia and quil 75/95、spindl vertical travel 400、morse taper NO.5、speed R.P.M 20~2180rpm、spindle feeds 0.04~2180rpm、spindle feeds 0.04~3.17(18 feeds)、column diameter 500、max distance column sruface to spindle center 2020(Min 410)、max distance base to spindle 3442、main motors 7.5kw、arm elevation motor 3.7KW
Bilateral 4-Spindle Auto Milling&Drilling Machine (brand new)
Dimension :
Dimension
Spindle speed cutting length 130×500、Y axis travel (longitudinal)365、Z axis center height 102、work table 300×350、weight load 420kg、feed cutting speed 1~6000 mm/min、motor cut 3HP×2PC drill 2HP×2PC、Hydraulic pump 2HP、Coolant 1/2HP、Machine weight 2050kg
