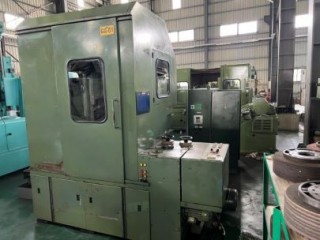

Hypoid gear grinder machine
Dimension :
Dimension
max. wheel diameter 700 mm、gear width 250 mm、max. module 7 、min. number of teeth 16 、max.helical angle +/- 30 °、slide stroke 290 mm、clamping length 256 - 570 mm、grinding worm dia. 280 - 400 mm、workpiece weight 300 kg、connected electrical load 30KVA、N weight of mchine 9700kg

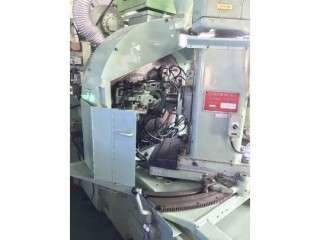

Ginding worm profiling machine (Dressing machine)
Dimension :
Dimension
Module 0.5~9、grinding wheel Dia 270~400、Width 62、84、104

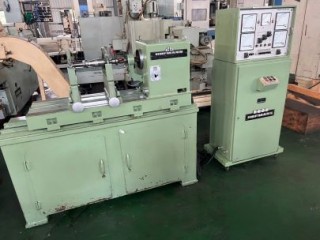

Balancing machine
Dimension :
Dimension
Maximum outer diameter 520φ、working length 600、HP 0.55/1.1KW、current 1.47/2.8A、 speed 710/1425rpm

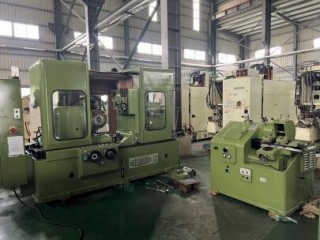

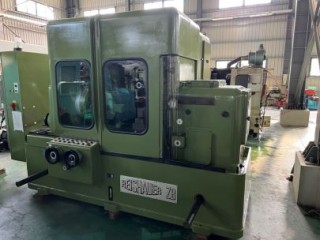

Spur and helical gear generating grinding machine
Dimension :
Dimension
tip circle diameter max 350φ、root circle diameter min(13)30mm、no.of teeth min/max 5...140、rotary table load max 200kp、grinding wheel diam. min/max 270/350mm(200/280mm)、grinding wheel bore/width 127/32mm(51/25mm)、speed of grinding wheel 1900rpm(2280rpm)、adjustment of stroke position 120mm、connected load approx 8.5KW、5900
Hypoid gear grinder machine
Dimension :
Dimension
MAX DIA (34")、861mm、2DP (MODULE 12)、Cone distance(maximum30° Spiral angle and 12" diameter wheel 381mm、depth of taper 6"、feed(sec/tooth) 1.9to11.8s econds、feed motor 1500rpm
