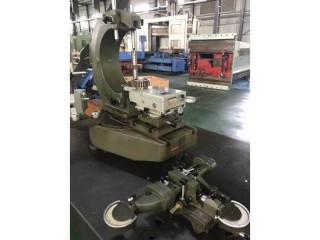

UNIVERSAL GEAR TESTER
Dimension :
Dimension
Test Max：350φ、Test Min：20φ

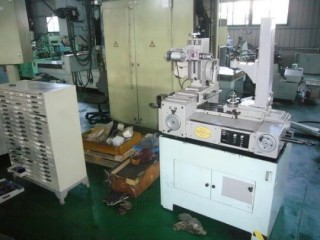

Gear tester machine
Dimension :
Dimension
MAX TEST DIAMETER 300、MODULE 1-10

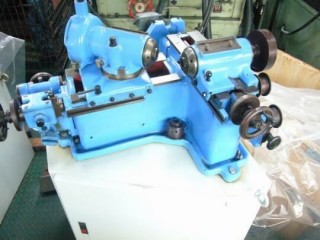

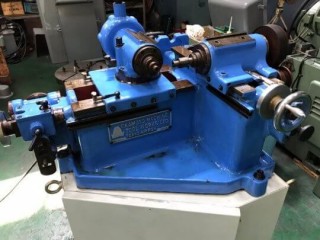

ANGULAR HYPOID TESTER
Dimension :
Dimension
MAX TEST WORK 3
ANGULAR HYPOID TESTER
Dimension :
Dimension
MAX TEST WORK 3
ANGULAR HYPOID TESTER
Dimension :
Dimension
MAX TEST WORK 3
ANGULAR HYPOID TESTER
Dimension :
Dimension
MAX TEST WORK 3
ANGULAR HYPOID TESTER
Dimension :
Dimension
MAX TEST WORK 3
ANGULAR HYPOID TESTER
Dimension :
Dimension
MAX TEST WORK 3

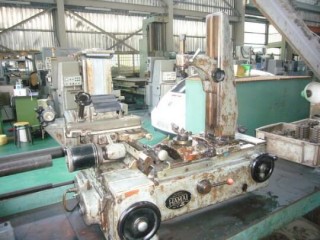

Gear rolling tester machine
Dimension :
Dimension
Magnification 100x200x500、Measuring range ±200u, ±125u, ±50u、Chart width 60mm、Contact pressure ≒ 1k、One graduation of the minimum testing chart 2u、Tested gear maximum diameter 200、Maximum center distance ≒ 200

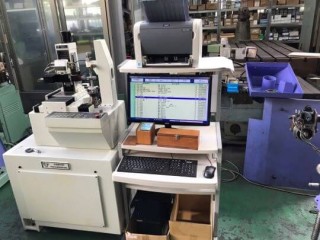

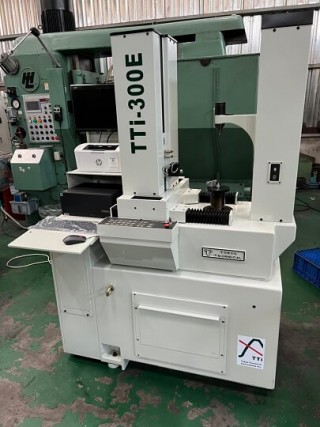

CNC GEAR MEASURING INSTRUMENTS
Dimension :
Dimension
Testitem:spur/helical gear profile, lead,pitch Measurement module(0.5~12)、Base circle dia 300φ、Helix angle ±65°Gear width 400mm、gear length 10~520mm、permissible gear weight 150kg、Machine weight1200kg、power supply AC100V、50/60HZ、6A、Measuremen accuracy 0.1um、accessories：①stylus 1.5φ、②Test gear、③Work driver&fork、④Test bar、⑤Operation manual
CNC GEAR MEASURING INSTRUMENTS
Dimension :
Dimension
Measuring module (0.2) 0.5~2.0、Base Circle Dia 120φ、Helix angle ±65°(90° manual)、gear width 100mm MAX、gear length 0~260mm、permissible gear weight 20kg max、machine weight 600kg、measurement accuracy 0.1u
