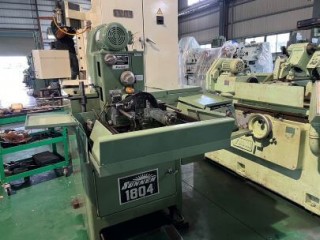

Horizontal honing machine
Dimension :
Dimension
Standard tooling：0.233~1.039"(5.92~26.39mm)、Special tooling：1.00~2.00"(2.540~50.80mm)、Workpiece length range：up to 12"(304mm)、Spindle speed：60~3000rpm(8 Speeds)、Traverse speed：60~200ipm(4 speeds)、Coolant capacity：95L、Coolant requirements：sunnen industrial Honing Fluids、Electrical requirements：208/230/460V,3Ph,50/60Hz、Floor space requirements：1880mm✕914mm✕1334mm(Length✕Width✕Height)
Horizontal honing machine
Dimension :
Dimension
Standard tooling：0.233~1.039"(5.92~26.39mm)、Special tooling：1.00~2.00"(2.540~50.80mm)、Workpiece length range：up to 12"(304mm)、Spindle speed：60~3000rpm(8 Speeds)、Traverse speed：60~200ipm(4 speeds)、Coolant capacity：95L、Coolant requirements：sunnen industrial Honing Fluids、Electrical requirements：208/230/460V,3Ph,50/60Hz、Floor space requirements：1880mm✕914mm✕1334mm(Length✕Width✕Height)
VERTICA HIGH SPEED AUTO HONING MACHINE
Dimension :
Dimension
Double spindle Dia range 12-4、Length range 100、Working stroke 25~200、Distance spindle and table Max 476、Min 276、Stroke speed 0~20 m/min、Spindle rpm 290~1430rpm、Machine size 2300×2550×3050、Weight 2500KG
VERTICAL HIGH SPEED AUTO HONING MACHINE
Dimension :
Dimension
Double spindles Dia range 15~50、Lenght rande 110、Spindle speed 180、240、315、420、580、750、1000、1320、Max reciprocating speed 20m/min、sizing system sizmatic/gaugmatie、stone expansion system screw/wedge、weight 950kg
VERTICAL TYPE HONING MACHINE
Dimension :
Dimension
Double spindles、Hole diameter：φ3.81~25.4mm、Hole length：80mm、Spindle speed：1100~3200rpm、Max storke speed20m/min、Stroke control：Hydraulic type、Motors for spindle drive：0.75KW、Machine weight 800KG、Floor space：L×W×H(2000×15001750mm)
VERTICAL TYPE HONING MACHINE
Dimension :
Dimension
Double spindles、Hole diameter：φ3.81~25.4mm、Hole length：80mm、Spindle speed：1100~3200rpm、Max storke speed20m/min、Stroke control：Hydraulic type、Motors for spindle drive：0.75KW、Machine weight 800KG、Floor space：L×W×H(2000×15001750mm)
Vertical Honing Machine
Dimension :
Dimension
Diameter range：3.81φ~25.4φ、Length Range 50mm、Spindle Speed：1100~3200rpm、Max Reciprocating Speed 25m/min
VERTICAL TYPE HONING MACHINE
Dimension :
Dimension
Max Hole dia 3.81φ~25.14φ、Max hole length 60、spindle speed 1100~3200rpm、max stroke speed 25 m/min ncselectric-hydraulic servo system、top surface to spindle nose end 450mm
VERTICAL TYPE HONING MACHINE
Dimension :
Dimension
Double spindles、Hole diameter：φ3.81~25.4mm、Hole length：80mm、Spindle speed：1100~3200rpm、Max storke speed20m/min、Stroke control：Hydraulic type、Motors for spindle drive：0.75KW、Machine weight 800KG、Floor space：L×W×H(2000×15001750mm)
VERTICAL TYPE HONING MACHINE
Dimension :
Dimension
Max capacity 3.81φ~25.4φ、Max spindle stroke 50、spindle speed 1100~3200 rpm、stroke speed 20m/min
