Precision Lathe
Dimension :
Dimension
Swing over carriage 26-1/2(673)、Swing over cross slide 20(508)、Center distance120"(3048)、Pulley speed 845、spindle hole 65mm、4jaw chuck 550φ、main motor 30HP、machine size 5470×1700×1460、

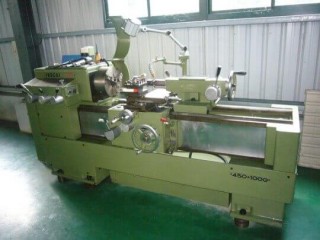

Lathe
Dimension :
Dimension
Spindle bore75φ、L:1000xSWING:450xMAX:240φ
Lathe
Dimension :
Dimension
Spindle bore75φ、L:1000xSWING:450xMAX:240φ
Lathe
Dimension :
Dimension
Spindle bore75φ、L:1000xSWING:500xMAX:240φ
Lathe
Dimension :
Dimension
Spindle bore55φ、MAX SWING 630、MAX LENGTH 1000
Polygon machine
Dimension :
Dimension
Max dia40φ、Max Working Length80、Chuck Spindle 300~375rpm、Cutter Spindle 600~750rpm
Lathe
Dimension :
Dimension
Max dia40φ、Max Working Length80、Chuck Spindle 300~375rpm、Cutter Spindle 600~750rpm

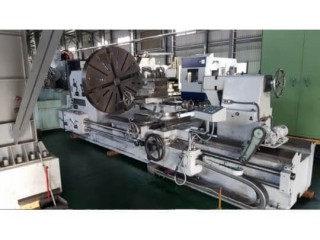

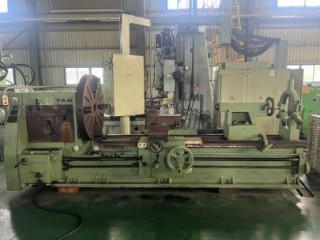

FACE LATHE
Dimension :
Dimension
Spindle bore50φ、Swing Over bed 1500、Swing over gap2000、Swing over cross slide 1100、Distance Between centers 3000、4-jaw chuck 1500、bad width 900、main motor 25 HP、weight 13500kg、Spindle bore 50φ
Heavy duth powerful lathe
Dimension :
Dimension
Swing over bed 1000、width of gap 1560、swing over cross slide 720、distance between centers 2500、spindle nose 115φ、width of bed 615、main motor 7.5kw
Lathe
Dimension :
Dimension
Width of bed 280、Swing over bed 350φ、Swing over cross spinde210φ、Distance between center 550、Spindle speed 83~1800rpm、Spindle bore 45φ、Tail stock taper NO.4、Travel for X-Axis 212mm、Travel for Z-Axis 508mm、Dimensions 1600×1700×1160、Weight 1020KG
Lathe
Dimension :
Dimension
Spindle bore 42φ、swing orer bed502、swing over cross slide300、center distance 1330、hole through spindle 42、width of bed 400、spindle speed steps 18、range main motor

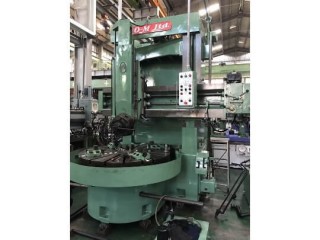

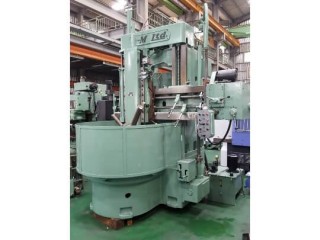

Vertical Turret Lathe
Dimension :
Dimension
Table dia 1200、Max Turning dia 1600mm、max turning height above table 1030mm(920)、max weight of work piece 4000kg、vertical traverse of turret head 700、Range of table speed 3.6~180rpm、main motor 22/18.5
Vertical Turret Lathe
Dimension :
Dimension
Table dia 1600、Max turning dia 2000、max turning height above table 1500、max weight of workpiece 7000kg、max torque 2000kg-m、(max cutting torce)、range of table speed 1.9~100
