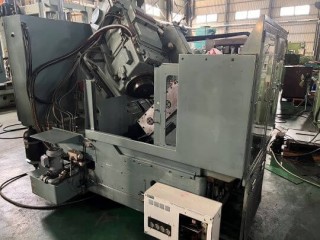

NC Hypoid Gear Generator
Dimension :
Dimension
FANUC Power Mate、Pitch diameter (Maximum) 10 to 1 ratio 10 1/2 (266mm )、21;2 to 1 ratio (10 mod. )、Face width (Maximum) 1 5/8"(41mm)、Full depth (Maximum)750"(19mm )、Main motor 50 cycle 1500RPM、Net weight 6123KGvv

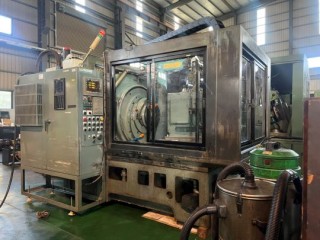

NC Hypoid Gear Generator
Dimension :
Dimension
Mitsubishi 3 Axis、Diametral pitch 12.7MOD、Cone distance (30° spiral angle and 12" cutter) 230mm、Work head angle 12°~90°、Maximum gear pitch diameter 10:1 (460mm)、2:1(406mm)、1:1(324mm)、Face width (maximum)70mm、Nmber of teeth 5~150mm、Diameter of taper hole at large end 100mm、Taper per foot 15mm、Depth of taper 150mm、Diaameter of hole through spindle 78mm、Cutter speeds 17~115rpm、Feed 9~80 seconds、Net weight 10750kg

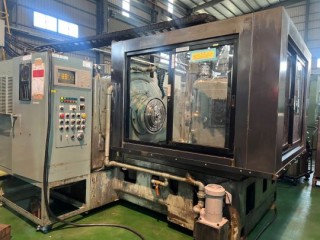

NC Hypoid Gear Generator
Dimension :
Dimension
Mitsubishi 3軸(Mldas 64)、 Max.cone distance : 107 mm, Max. pitch diameter (30° spiral angal) : 10 to 1 ratio : 215 mm, 2 to 1 ratio : 190 : mm, 1 to 1 ratio : 152 mm, Max. face width: 31.7 mm, Max depth : 15.8 mm, Diametral pitch, coarsest : 6.35 Mod. , WORK SPINDLE Diameter of taper hole at large end: 23 mm Taper per foot : 15.5 mm, Depth of taper: 152.4 mm, Diameter of hole through spindle: 61.9 mm Work Head Settings Offset above center, maximum :76.2 mm, Offset below center, maximum : 76.2 mm, Distance from machine center to nose of spindle (maximum) : 31.7 mm、machine weight 7500KG
