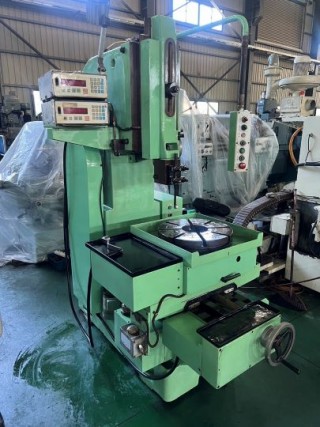

CNC Soltting Machine
Dimension :
Dimension
Max stroke 230、table dia 430、front swivel angle of ram 10°、Gear ratio 1:90、Ram speed (spm)22、36、56、91、Vertical ram travel 320、Distanco between end of ram work table 450、Y axis 510、X 440、Feed rate of work table 0~2、Main drive motor 3HP、Feeding and dividing motor(soeppiing motor)81KG/CM、Net weight 2000KG
CNC-200 3 axis CNC Slotting
Dimension :
Dimension
Max travel of the ram (stroke)200、rertical ram travel 220、Ram speed (stroke) Low 31-37-43-55、Hight 64-74-88-112、Swivel angle of head ±30°、Distance between end of ram guideway and work table 300、Dia tabe 400φ、Longitudinal travel of working table (X axis )250、Cross travel of table 250、Main motor (brake motor)2HP (OP/RP)
CNC-200 3 axis CNC Slotting
Dimension :
Dimension
Max travel of the ram (stroke)200、rertical ram travel 220、Ram speed (stroke) Low 31-37-43-55、Hight 64-74-88-112、Swivel angle of head ±30°、Distance between end of ram guideway and work table 300、Dia tabe 400φ、Longitudinal travel of working table (X axis )250、Cross travel of table 250、Main motor (brake motor)2HP (OP/RP)
