Gear hobbing machine (High production)
Dimension :
Dimension
Max Dia 600φ、Max Module 8、Table Dia 570φ、1. Hydraulic Auto 2 Cycle Cutting System、2. Auto Hob Shifting Device、3. Auto Hydraulic Support Lift
Gear hobbing machine (High production)
Dimension :
Dimension
Max Dia 600φ、Max Module 8、Table Dia 570φ、1. Hydraulic Auto 2 Cycle Cutting System、2. Auto Hob Shifting Device、3. Auto Hydraulic Support Lift
Gear Hobbing Machine
Dimension :
Dimension
Max Dia 600φ、Table size 420φ、Max Module 5
Gear Hobbing Machine
Dimension :
Dimension
Max workpiece dia 600φ、Without support 450、Module5、Crown hobbing equipment
5 Axis CNC Hobbing Machine (JAPAN KASHIFUJI)
Dimension :
Dimension
Max workpiece dia 150φ、Max pitch module4、Axial feed travel 400mm、max helix angle ±45°、Max hob shift travel 150、 center distance between hob&table 15~150mm、table top dia 190、hob spindle RPM 100~850rpm、FANUC 15M、machine weight 7000kg
5 Axis CNC Hobbing Machine (JAPAN KASHIFUJI)
Dimension :
Dimension
Max workpiece dia 150φ、Max pitch module4、Axial feed travel 400mm、max helix angle ±45°、Max hob shift travel 150、 center distance between hob&table 15~150mm、table top dia 190、hob spindle RPM 100~850rpm、FANUC 15M、machine weight 7000kg，Auto loader
5 Axis CNC Hobbing Machine (JAPAN KASHIFUJI)
Dimension :
Dimension
Max workpiece dia 150φ、Max pitch module4、Axial feed travel 400mm、max helix angle ±45°、Max hob shift travel 150、 center distance between hob&table 15~150mm、table top dia 190、hob spindle RPM 100~850rpm、FANUC 15M、machine weight 7000kg
5 Axis CNC Hobbing Machine
Dimension :
Dimension
Max workpiece dia 220、Max module7、Max axial feed travel 300、Max hob head swivel ±45°、Max hob size dia×length 150φ×200l、Max hob shift travel 150、Taper of spindle Nose NT40、Max revolution of hob 50~500R.P.M、Fanuc 0i-MF Plus
5 AXIS CNC HOBBING MACHINE
Dimension :
Dimension
Max workpiece dia 400、Max Pitch module 7、Axial feed travel 300、max helix angle 45°、max hob shif travel 150、center distance between hob&table 35~305、table size 460φ、hob spindle RPM10~500rpm、FANUC 10M、maachine weight 9800kg
5 AXIS CNC HOBBING MACHINE
Dimension :
Dimension
Max workpiece dia 400、Max Pitch module 7、Axial feed travel 300、max helix angle 45°、max hob shif travel 150、center distance between hob&table 35~305、table size 460φ、hob spindle RPM10~500rpm、FANUC 10M、maachine weight 9800kg、Auto Magazine Feed Attachment
Gear hobbing machine (High production)
Dimension :
Dimension
Max dia 150、max module 4、two auto cycle auto hob shift、auto hydraulic support lift 、support lift long size、hob spindle speed 160~530、spindle taper NT40、Main motor 5.5kw、machine weight 6300kg
Gear hobbing machine (High production)
Dimension :
Dimension
Max dia 150、max module 4、two auto cycle auto hob shift、auto hydraulic support lift 、support lift long size、hob spindle speed 160~530、spindle taper NT40、Main motor 5.5kw、machine weight 6300kg、Auto loader

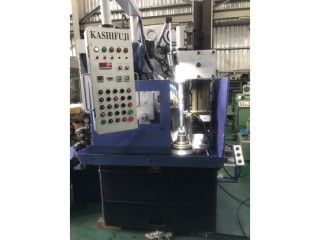

Gear hobbing machine (High production)Tailstock lengthen N206
Dimension :
Dimension
Max dia 150、max module 4、two auto cycle auto hob shift、auto hydraulic support lift 、support lift long size、hob spindle speed 160~530、spindle taper NT40、Main motor 5.5kw、machine weight 6300kg
Gear hobbing machine (High production)
Dimension :
Dimension
Max dia 150、max module 4、two auto cycle auto hob shift、auto hydraulic support lift 、support lift long size、hob spindle speed 160~530、spindle taper NT40、Main motor 5.5kw、machine weight 6300kg
Gear hobbing machine (High production)
Dimension :
Dimension
Max dia 150、max module 4、two auto cycle auto hob shift、auto hydraulic support lift 、support lift long size、hob spindle speed 160~530、spindle taper NT40、Main motor 5.5kw、machine weight 6300kg
GEAR HOBBING MACHINE
Dimension :
Dimension
Max dia 900、Max module 10、table dia 710、gear width 370、table hole 160、dia of hob 192、work piece length 820、Hob shifting 135、cutter length max 200、total power 20kw、weight 9.5 ton
GEAR HOBBING MACHINE
Dimension :
Dimension
Max Dia 315、Max Module 8、TWO AUTO CYCLE、Auto hob shift、auto hydraulic support lift、hob spindle speed 100~400、main motor 7.5kw、machine weight 7600kg
GEAR HOBBING MACHINE
Dimension :
Dimension
Max dia 480φ(Without support)、Max dia 300φ(With support)、Table size 300、Max travel of cutter saddle 230、Max module 5、Max hobcutter dia 100×100、Cutter speed 80~320rpm、weight 2000kg
Production Gear hobbing machine
Dimension :
Dimension
MAX DIA300φ、MAX MODULE6、High production type、1. Hydraulic Auto 2 Cycle Cutting System、2. Auto Hob Shifting Device、3. Auto Hydraulic Support Lift、4.workpiece hydraulic clamping device
Production type auto gear hobbing machine
Dimension :
Dimension
Max dia 400、Max module6、Max hob size 155φ×155l、auto cycle cutting system、Max axial feed travel300、Auto shifting device hydraulic support lift main motor 10HP、machine weight 7200KG
