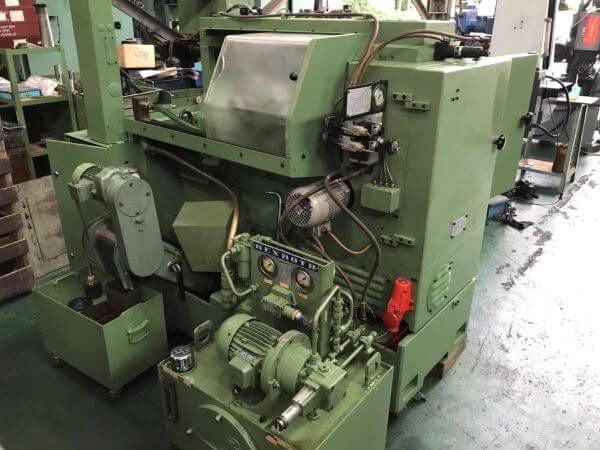

- Manufacturer KOEPFER(GER)
- Specification 173 type
- Year sell
- Location Ryokuta 1st Factory
Dimension

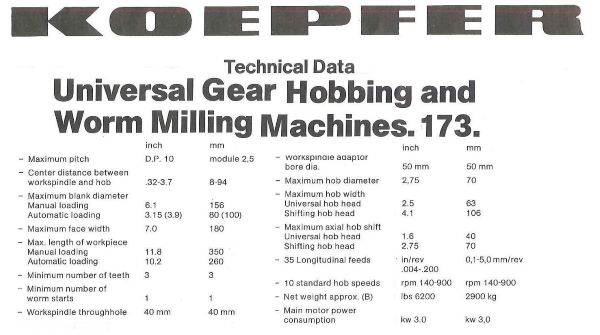

Maximum pitch module 2.5、Center distancce between workspindle and hob 8~94mm、Maximum blank diameter Manual loading 156、Maximum face width 180、Minimum number of teeth 3 、Workspindle adaptor bore dia 50mm 、Maximum hob diameter 70 、Shifting hob head 106、Shifting hob head 70、35 Longitudinal feeds 0.1~5.0mm/rev、10standard hob speeds 140~900rpm、Net weight approx 2900kg、Main motor power consumption 3.0kw
Information
