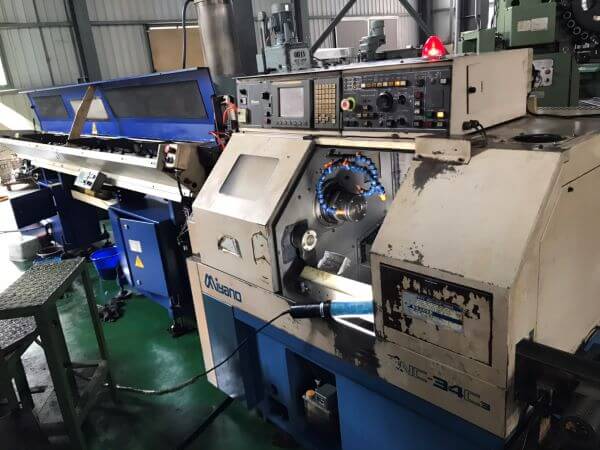

- Manufacturer Miyano
- Specification BNC-34-C3
- Year
- Location 綠田霧峰廠
Dimension
Max work length for bar work 150、for chuck work 80、 bar capacity round for main spindle 12~42φ、spindle speed range 170~5000rpm、FANUC 21iT、 spindle nose 43、Hydraulic cylinder X axis 100、Z axis 185、Turret stations 8、Main motor 5.5/7.5KW、weight 2300KG
Information
