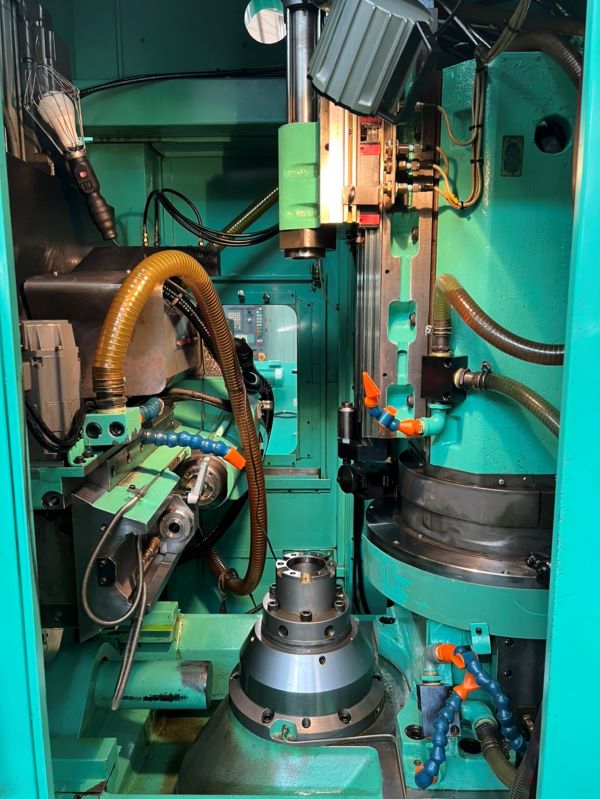

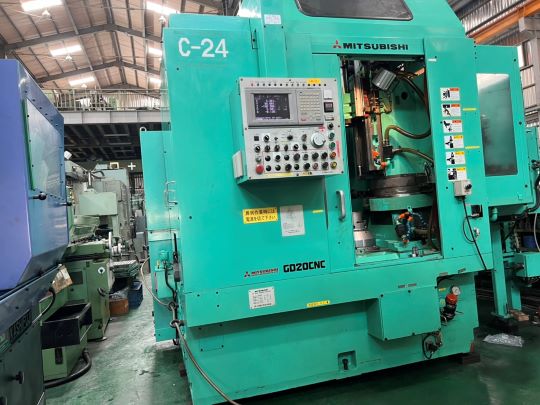

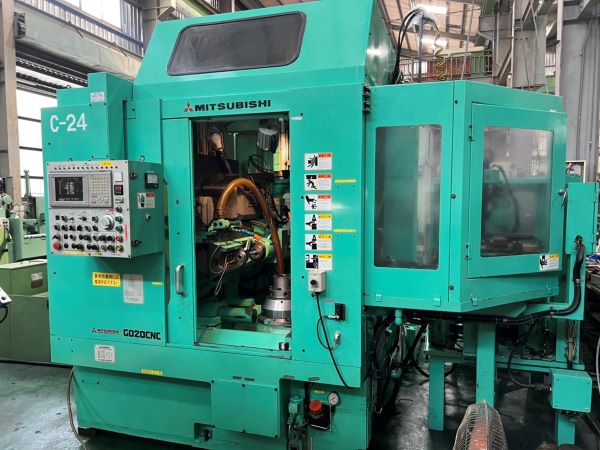

5 Axis CNC Gear hobbing machine

  • Manufacturer MITSUBISHI
  • Specification GD-20CNC
  • Year
  • Location Ryokuta 1st Factory
Inquiry

Dimension

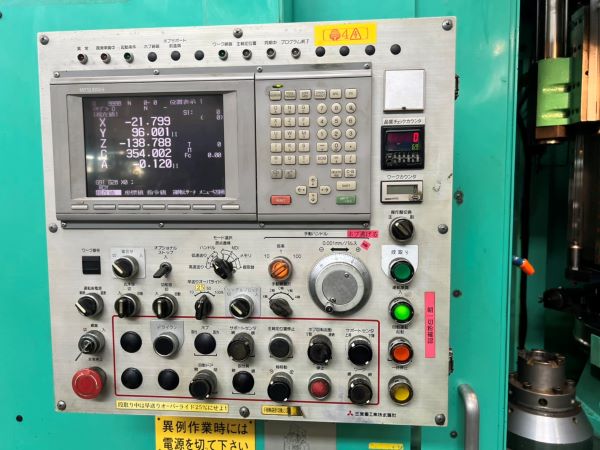

Max workpiace diaφ200、Max dia pitch M6、Max axial traver 250、Max radial travel 225、High worktable to cnter of hob sprindl 190~440、Center distance between hob sprindle and work spindle 25~250mm、Max hob dia×length 130×230、Max hob shift 180、Hob speed range 100~1000rpm、Max table speed 200rpm、Hob head swiveling angle ±45°、Main motor 7.5KW、Net weight 6.5TON、CNC 5 AXIS、Control:MITSUBISHI-MELDASS、Auto loader
