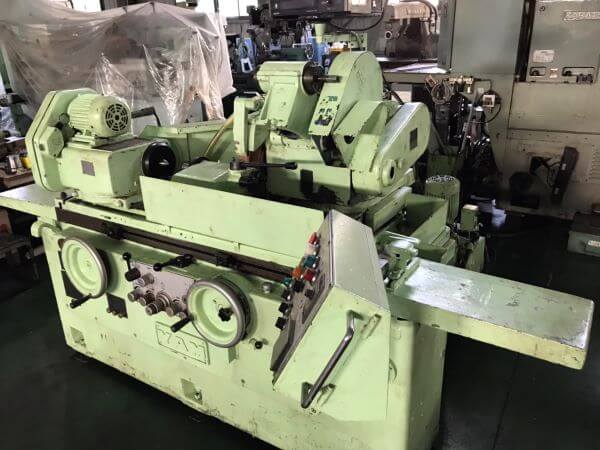

- Manufacturer YAM (M.I.T)

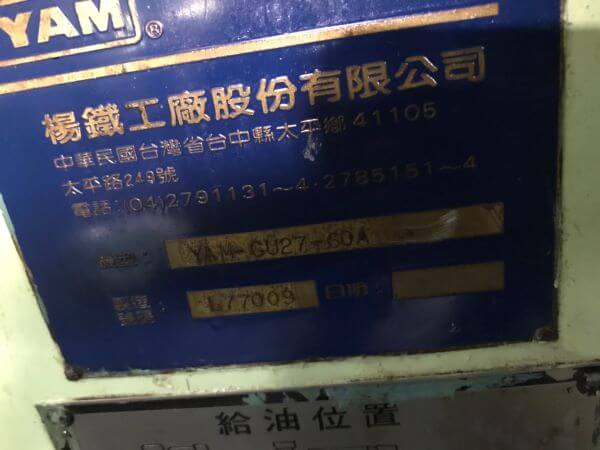

- Specification GU27-60A Type
- Year
- Location Ryokuta 2nd Factory
Dimension

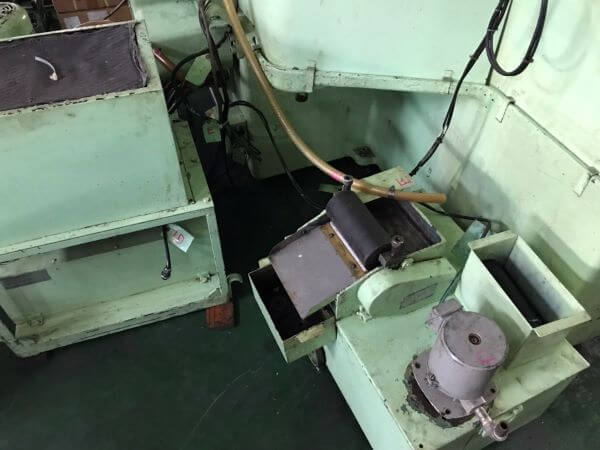

Max grinding length 600mm、Max grinding dia250φ、Max workpiece weight 130KG、6-Speeds、Swivel angle 120°、Tahle speed 50~4000mm/min、Feed der handwheel revolution 0.001mm、Table tilt adjustment 9°、4°、Table min travel 8mm/min、grinding head swivel angle 30° with internal grinding、grinding wheel size 355φ×127φ×25~50、Magnet separator、weight 2900KG、machine size 2600×1300×1650(mm)、
