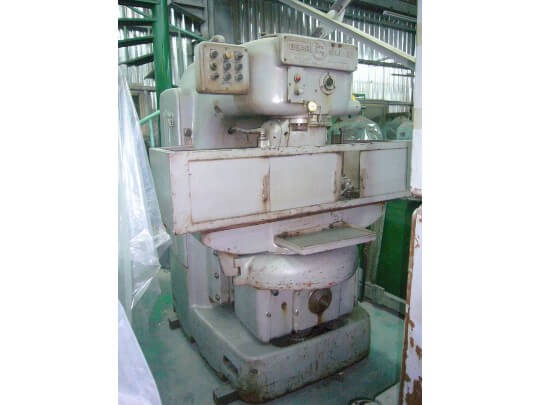

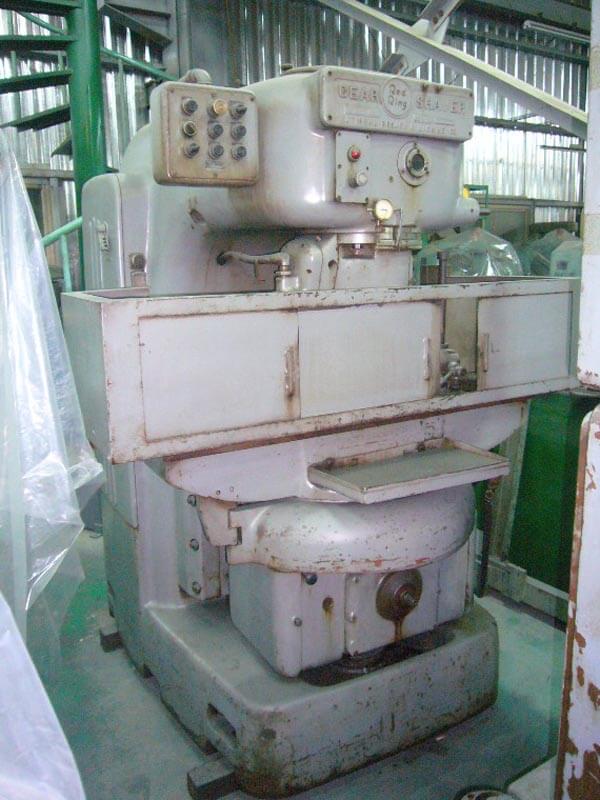

Gear shaving machine
- Manufacturer Red Ring (USA)
- Specification GUF-8
- Year
- Location Ryokuta 1st Factory
Dimension

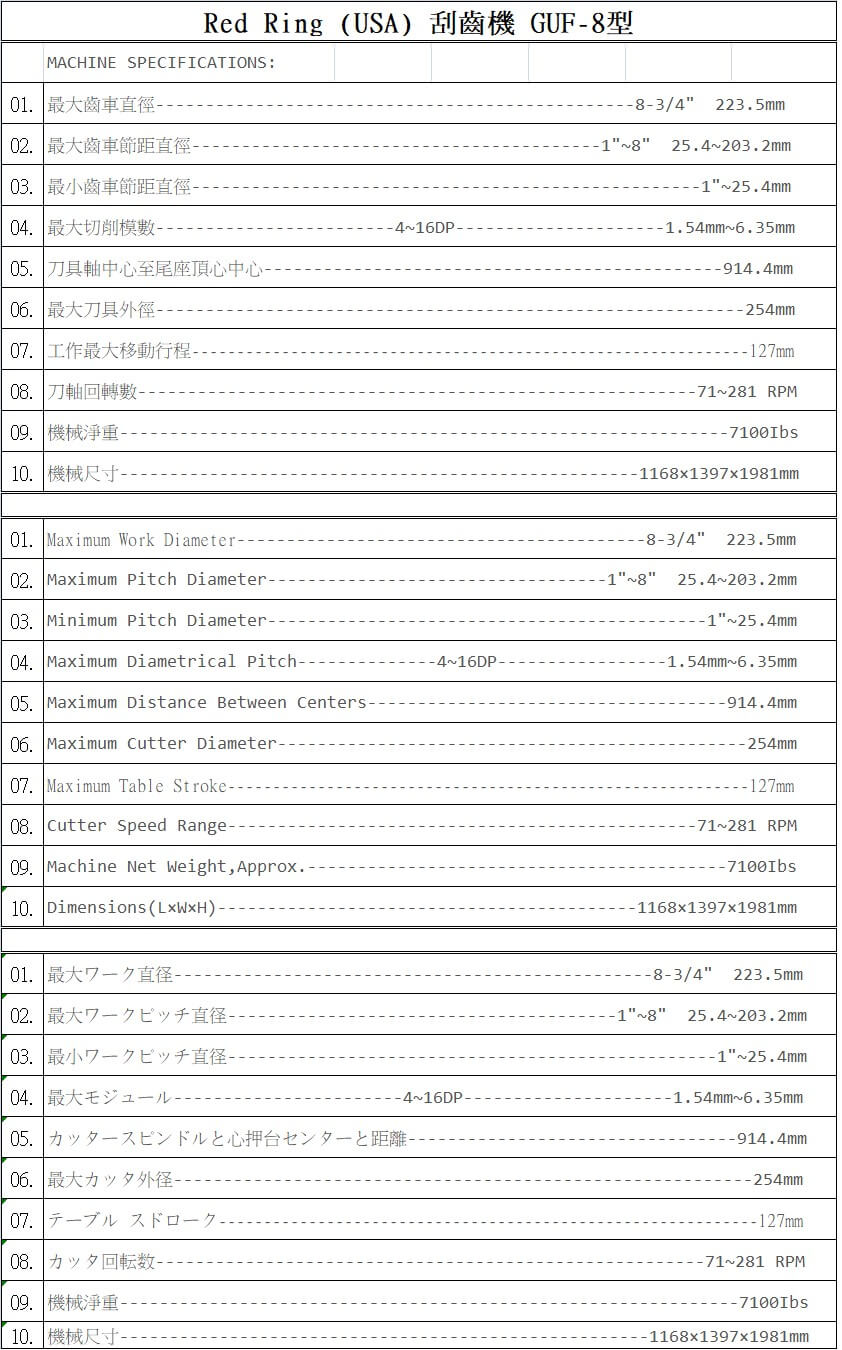

Maximum Work Diameter8-3/4" 223.5mm、Maximum Pitch Diameter1"~8" 25.4~203.2mm、Minimum Pitch Diameter1"~25.4mm、Maximum Diametrical Pitch-----4~16DP-----1.54mm~6.35mm、Maximum Distance Between Centers914.4mm、Maximum Cutter Diameter254mm、Maximum Table Stroke127mm、Cutter Speed Range71~281 RPM、Machine Net Weight,Approx.7100Ibs、Dimensions(L×W×H)1168×1397×1981mm
