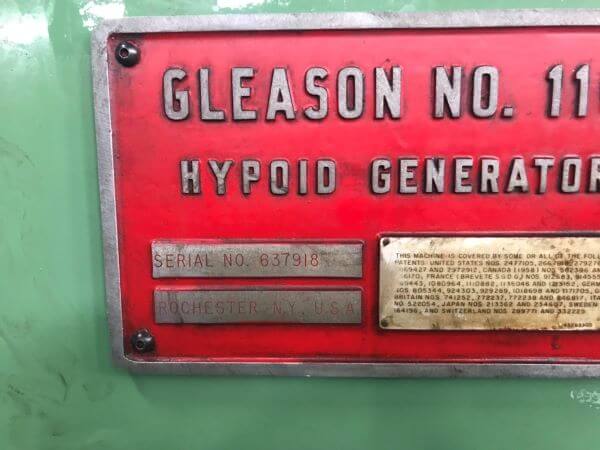

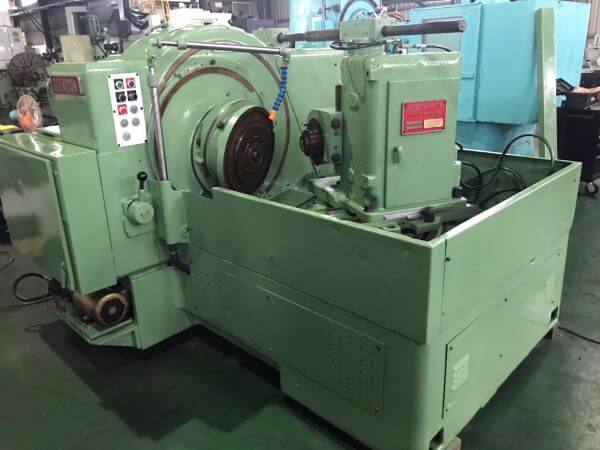

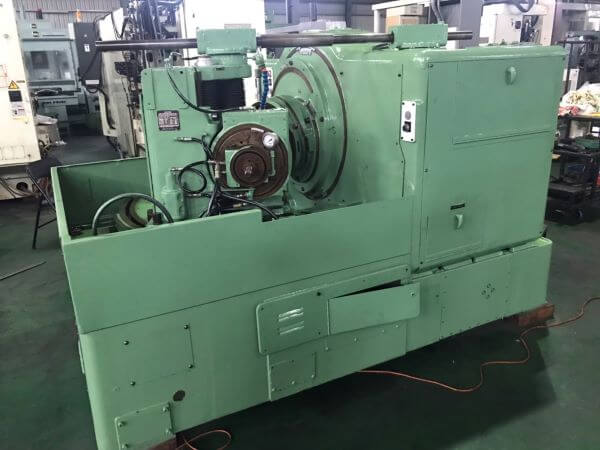

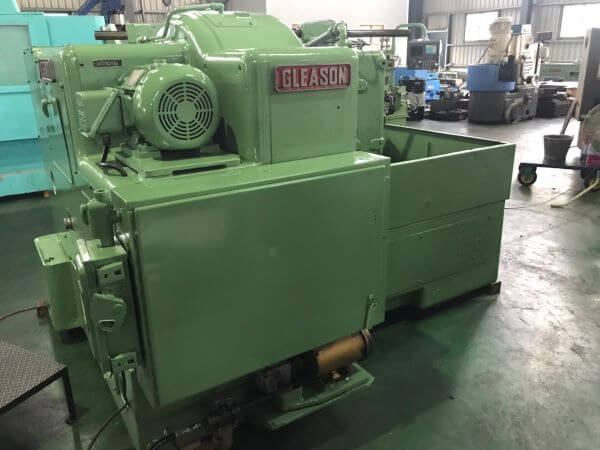

- Manufacturer GLEASON(USA)
- Specification NO.116
- Year sell
- Location Ryokuta 2nd Factory
Dimension
Max. cone distance 30° spiral angle & 12" cutter 228.6、Extreme ratio 10:1、Max. gear pitch diameter (30° spiral angle )、10:1 ratio460、2:1 ratio406、1:1 ratio323、Coarsest diametral pitch12.7(DP2)、Max. full deep25.4mm、Max. face width69.9mm、Number of teeth5~150、Cutter speeds17~115rpm、Feed (seconds per tooth)9~80sec/tooth
Information
