- Manufacturer NACHI
- Specification NUV-10BTH
- Year
- Location Ryokuta 2nd Factory
Dimension

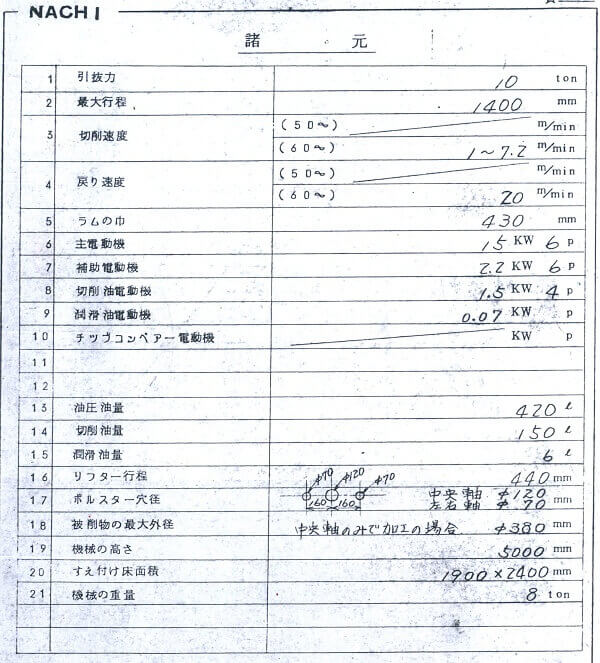

Pulling force10Ton、Max stroke 1400mm、Cutting speeds 60Hz 1~7.2M/min、Return speeds 60Hz 20M/min、Broach lifter stroke 440mm、Ram width 430mm、Bolster hole dia 127、Max outside dia of workpiece 380φ、Working table height 2200mm、Main motor 15KW/6P、Floor space 1700×2400mm、Weight 8Ton
Information
