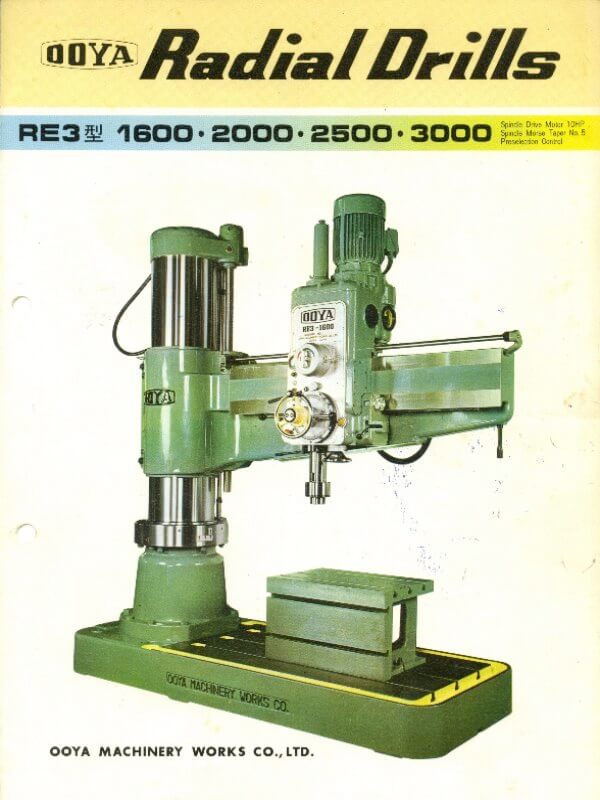

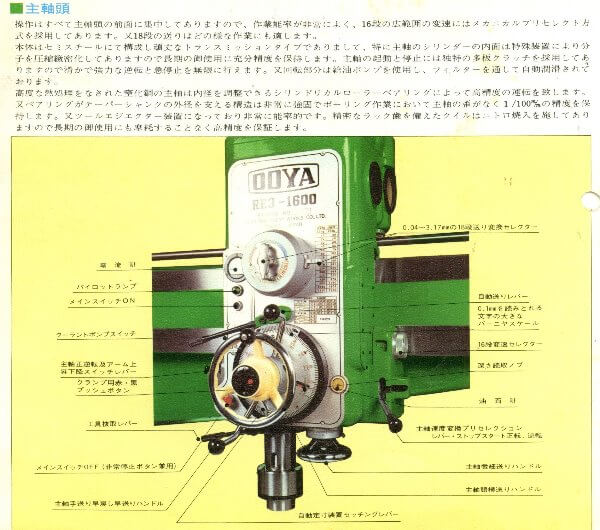

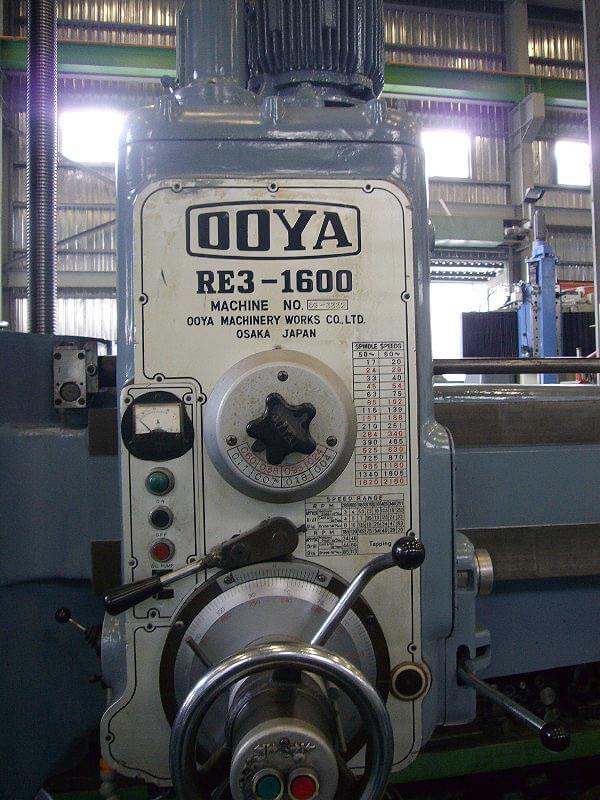

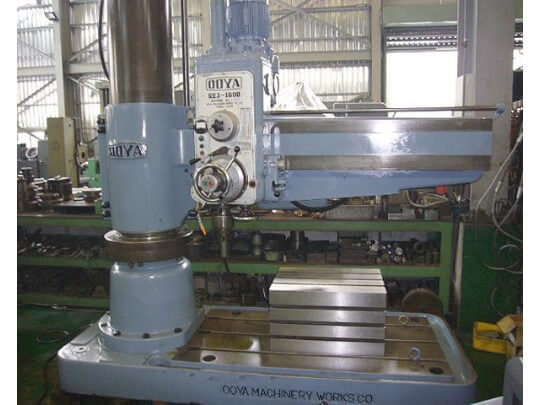

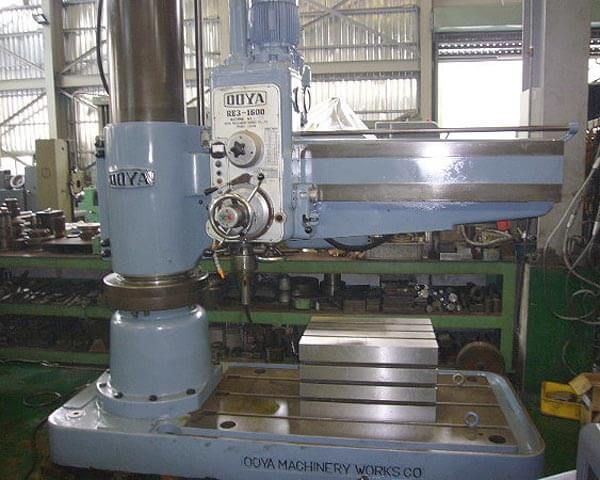

Radial drilling machine

Manufacturer OOYA
Specification RE3-1600
Year
Location Ryokuta 1st Factory

Inquiry

Dimension

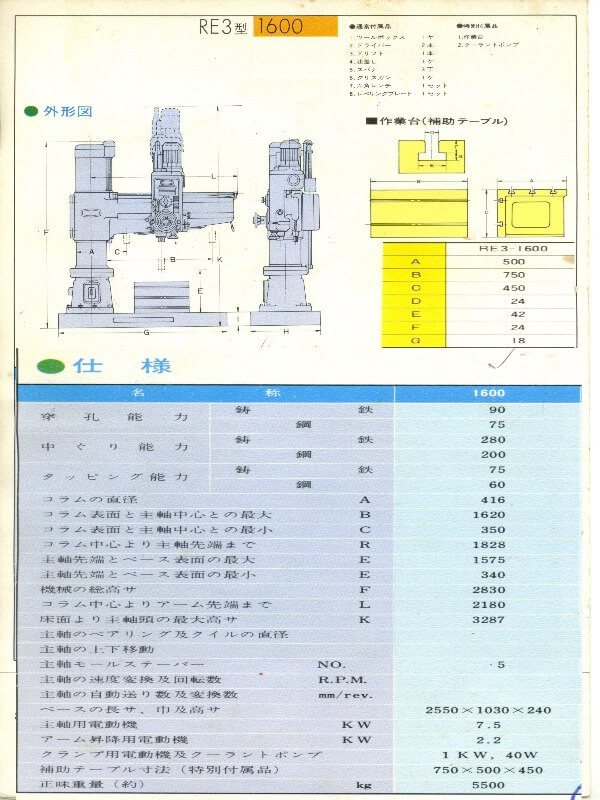

Drilling capacity steel 75、cast iron 90、Tapping capacity steel 60、cast iron 75、column dia 416、Max dist from column saface to spindle center 1620(Min 350)、max dist from spindle to base 1575(min 340)、Spindle dia 75/95、taper M.T5、Spindle travel 400、arm travel 850、spindle box travel 1330、weight 4300kg

Radial drilling machine
