- Manufacturer HO CHUN (M.I.T)
- Specification UH-1250A
- Year sell
- Location Ryokuta 2nd Factory
Dimension

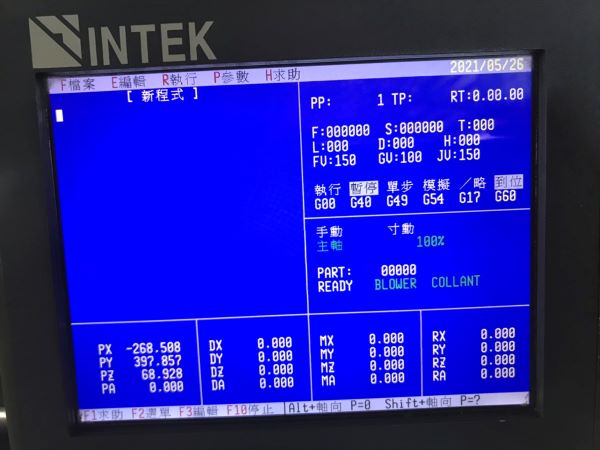

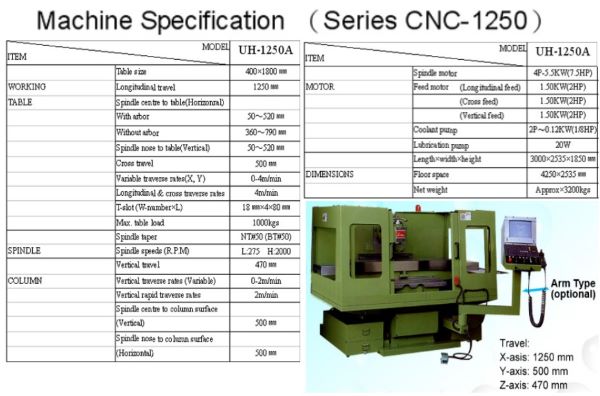

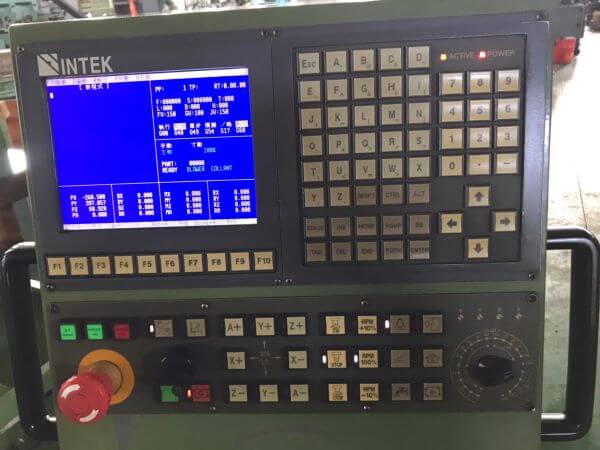

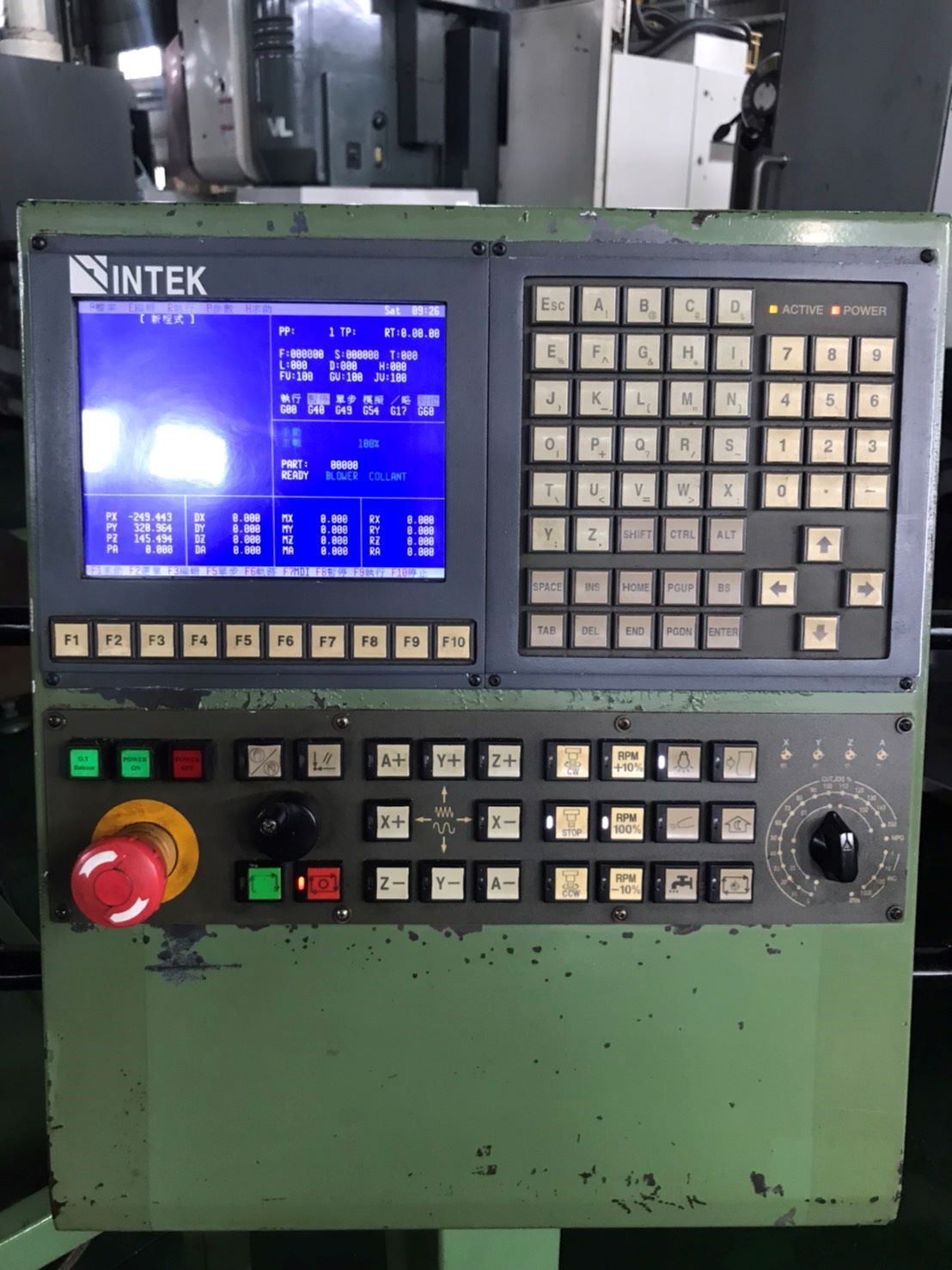

Cnc Controllor(INTEK TECHNOLGY)、Table size 400×1800、Xaxis 1250 with arbor 50-480、without arbor 360~790、Spindle nose to table(Vertical)50~520mm、Yaxis(Cross tralvel)500 、Cnc Rotary Table X 、Y-axis variable traverse rates、Max table load 1000kgs、spindle taper BT 50、Spindle speeds 275~2000rpm.、column vertical travel (Z axis)470mm、rates 0~2m/min spindle center to column surface 500/420、spindle motor 5.5KW、machine weight 3600KG
Information
