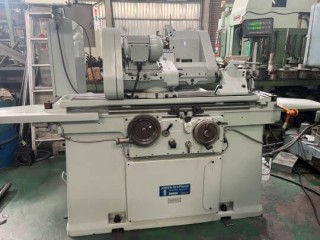

CYLINDRICAL GRINDER
Dimension :
Dimension
Centre height 100、Distance between centres 600φ、Max longi tudinat travel 620、Grinding wheel 350、Bore 1270、wheel width 50、Spinder taper MT4、workpiece spinder head 360°、Table angular displace ment 7°、Spinder rpm 65~500rpm、chine weight 1800kg

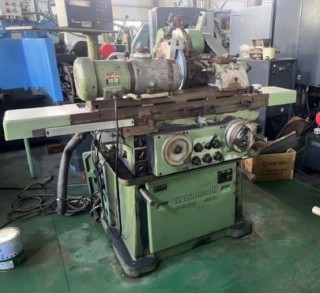

CYLINDRICAL GRINDER
Dimension :
Dimension
Swing over the table 240、Max length of workpiece 1000、max dia 150
Cylindrical grinding machine
Dimension :
Dimension
swing over bed 300、distance between centers 1000、grinding dia 220、grinding wheel dia 405×(25~75)×152.4
Extermal
Dimension :
Dimension
swing max 254、grinding length between conters 686、height from bable top to centers 127、feed at reversol of table reduction in dia 0.005 to 0.030、adjustment of table inchuding angle20°、table traverse steplessly variable per min 76 to 3658mm、floor space reguired 3099×1473、net weight 1940kg
Cylindrical grinding machine
Dimension :
Dimension
Max Length 350、Max Dia 260φ
ANGULAR GRINDING MACHINE
Dimension :
Dimension
Max swing over table 260、Max distance Between center 400
Cylindrical grinding machine
Dimension :
Dimension
swing over bed 320、distance between centers 1500、grinding dia 0~280φ、grinding wheel dia 355φ×50×127、wheeld swivel angle L/R300、table swivel angle 8.5°~3°、90°~30°
