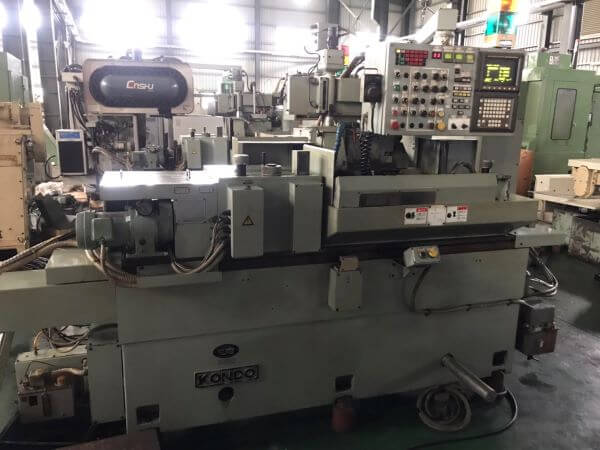

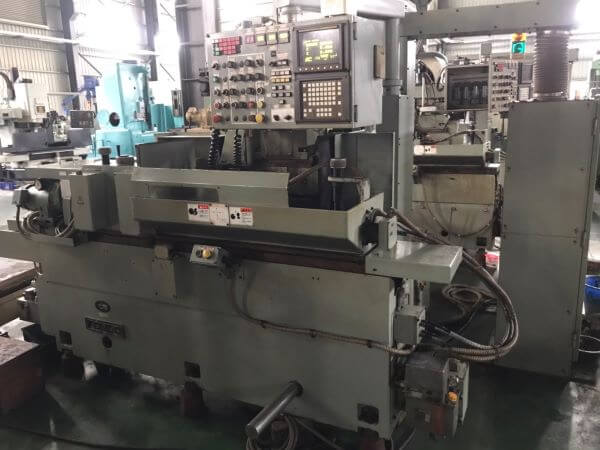

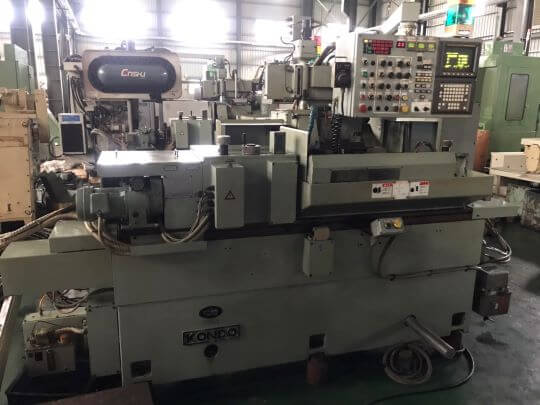

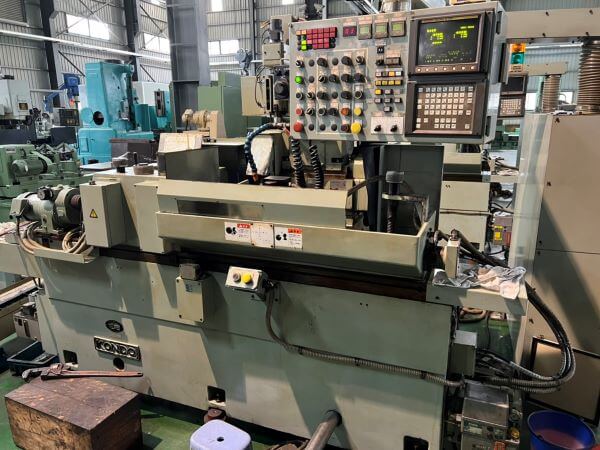

- Manufacturer KONDO｜近藤
- Specification CGA-350NC TYPE
- Year
- Location Ryokuta 2nd Factory
Dimension
Distance between centers 350、Swing over table 160、Max grinding dia 80φ、Max cam lift 20、Max workpiece weight 10kg、heel size 510φ×(16、19)×152.4φ、wheel speed 1685rpm、wheel. table feed strokes 225mm、center hole taper of work head MT.4、spindle speed hight 16~95rpm、Low 8~47.5rpm、size of taper on footstock MT.3、OD of disc plate 490φ、450φ、Master cam dia 140φ、OD of cam roller 170、Number of mastor cams 24、Table traverse stroke 440、Auto dresser motor 5.5kw、weight 4500kg
